Your present position:Full digital premium conference system>>Tabletop unit>>Full digital Tabletop unit RX-D6640/02
Tabletop unit-Full digital Tabletop unit RX-D6640/02
Tabletop unit-Full digital Tabletop unit RX-D6640/02
Product description:

Restmoment original full digital conference technique, compliant to IEC 60914 international standard;Built-in 24 points self restraint return function. The sound is near CD quality.

  • Function
  • Parameters

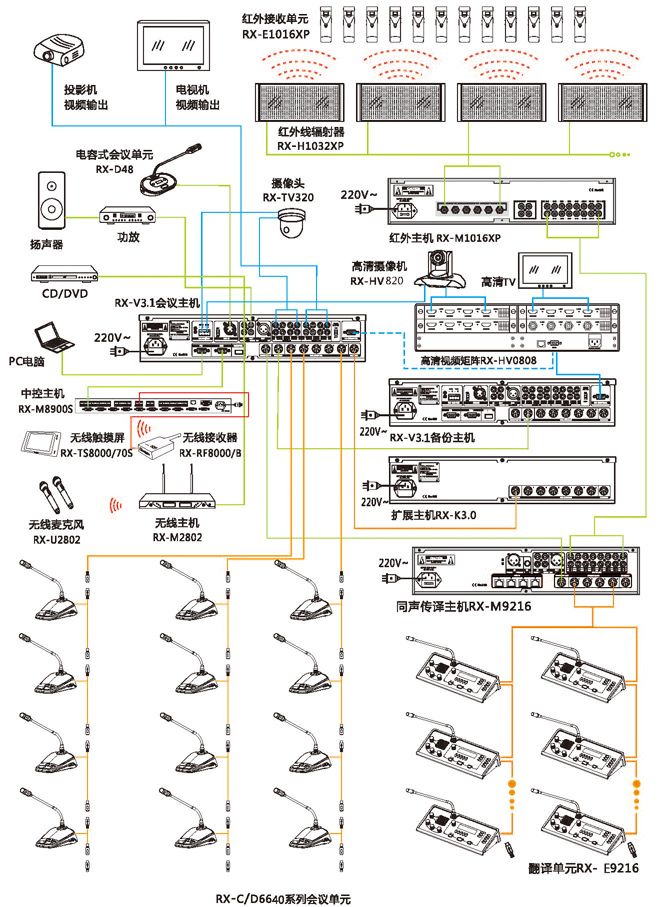

  • Diagram
  • List
  • View

Ø Restmoment original full digital conference technique, compliant to IEC 60065 international standard.

Ø Built-in 24 points self restraint return function. The sound is near CD quality.

Ø All digital audio transmission technique, point to point connection mode, remote transmission won’t influence on sound quality. Distance between equipments could reach at 150m

Ø Elegant table top design.

Ø The system is connected by “Hand in hand ring” or “Y type hand in hand”.

Ø In “hand in hand ring”, the system will not be effected if there is a disconnection in ring.

Ø Support”PnP”

Ø Strong anti-interference from mobile phone; Anti-interference from external driving source.

Ø Built-in high fidelity speaker, when turn on MIC or connect with earphone, speaker could mute automatically.

Ø Each unit has arbitrary distribution ID address, convenience for installation and avioding ID address repeating

Ø Built-in channel selector, can receive 1+8 languages.

Ø Stereo earphone output, could adjust sound volume.

Ø 5 work modes

   ● Limited mode       ● FIFO mode

   ● Apply mode          ● Voice activating mode        ● Free discussion mode

Ø Cooperated with video controller and camera, have video tracing function.

Ø Chairman unit have Priority, could switch off the speaking units.

Ø System support 150 chairman units, could specify one as chief chairman.

Ø Working with management software to achieve more functions.

Ø RX-6640/02 adopts 14mm diameter gold-plated capacitive microphone core; The pickup distance is up to 100cm

Ø RX-6640/02 adopts 14mm diameter gold-plated capacitive microphone core; The pickup distance is up to 100cm

Mode

RX-D6640/02 series

Capacity of single way

20pcs

Capacity of system

Depends on system controller, ≦65535

Frequency respond

30-20KHz(Human voice golden Frequency respond)

MIC type

Capacitive

sensitivity of MIC

-47Db

SNR

102Db

Dynamic Range

106Db

Resolution of channels

102Db

Total harmonic distortion

<0.05%

Working power

24DC,-5%

Working current

50ma, ±5%

Maximum power

1.2W

Control type

RS-485

Editting number

User-defined

Earphone output

16Ω, 250mW/32Ω,125mW

Connection mode

Hand in Hand ring or Y type hand in hand

Mount

Big 6 pin DIN/RJ45

Simultaneously interpretation function

8 CH

Voting

NO

IC Card

NO

Color

Grey ,Black, Silver (Custom-made)

Installation

Tabletop

Mode

Identity

Discussion

Video tracking

Voting

Interpretation

Message

Lcd

IC card

Loudspeaker

RX-C6640/L

Chairman

---

---

---

---

RX-D6640/L

Delegate

---

---

---

---

RX-C6640/04L

Chairman

---

4 CH

---

---

RX-D6640/04L

Delegate

---

4 CH

---

---

RX-C6640/08L

Chairman

---

8 CH

---

---

RX-D6640/08L

Delegate

---

8 CH

---

---
