Tabletop conference microphone RX-Q2C
Tabletop conference microphone RX-Q2C
Product description:

Restmoment original full digital conference technique, compliant to IEC 60914 international standard; The sound is near CD quality.

  • Function
  • Parameters
  • Connection

Ø Restmoment original full digital conference technique, compliant to IEC 60914 international standard.

Ø Built-in 24 points self restraint return function. The sound is near CD quality.

Ø All digital audio transmission technique, point to point connection mode, remote transmission won’t influence on sound quality. Distance between equipments could reach at 100m

Ø Elegant table top design.

Ø The system is connected by “Hand in hand ring”.

Ø In “hand in hand ring”, the system will not be effected if there is a disconnection in ring.

Ø Support”PnP”

Ø Strong anti-interference from mobile phone; Anti-interference from external driving source.

Ø Each unit has arbitrary distribution ID address, convenience for installation and avioding ID address repeating.

Ø 4 work modes:Limited mode,FIFO mode,Apply mode,Free discussion mode.

Ø Cooperated with video controller and camera, have video tracing function.

Ø Chairman unit have Priority, could switch off the speaking units.

Ø Working with management software to achieve more functions.

Mode

RX-Q2 series

Unit type

Tabletop conference chairman unit/delegate unit

Capacity of system

Depends on system controller, ≦65535

Frequency respond

30-20KHz(Human voice golden Frequency respond)

MIC type

Capacitive

MIC sensitivity

-47Db

SNR

102Db

Dynamic range

106Db

Total harmonic distortion

< 0.45%

Working power supplier

24DC,-5%

Working current

50mA ±5%

Maximum consumption

1W

Control type

RS-485

Edit ID

Distributed by system controller

Connection mode

Hand in Hand ring

Mount

RJ45

Net weight

0.7KG

Dimension

126x 149x 59mm

Color

Grey ,Black, Silver (Custom-made)

Installation

Tabletop

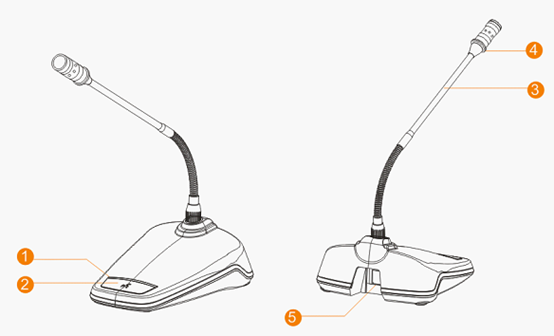

Figure 4.2   Description for unit

1. Speaking indicator

2. Only one speaking button for delegate unit; For chairman unit, left is priority button, and right is speaking button;

3. Microphone pole

4. Microphone indicator light: Light is on during speaking

5. Input and output RJ45 jacks
